Multi-Purpose Housing

A proven, versatile enclosure designed to environmentally protect outside plant equipment and cabling in CATV networks.

The Amphenol CMPH-7 Series Multi-Purpose Housing is designed for new installations as well as rehabilitation of existing CATV pedestal housings. The superior structural strength, outstanding environmental protection and ease of installation combine to create a long-life housing that reduces operational expenses. The CMPH-7 series housing has proven itself as a versatile workhorse supporting in a wide variety of applications and customer networks.

Applications

  • Cable television amplifier, passives and optical node enclosure
  • Retrofits and upgrades to replace failing metallic enclosures
  • Split base for simplified placement around existing cables

As a passive or active storage enclosure the CMPH-7 can be a better option than a handhole, providing an easy to locate and access, versus underground handholes potential of water fill and freezing.

Product Gallery:

Features:

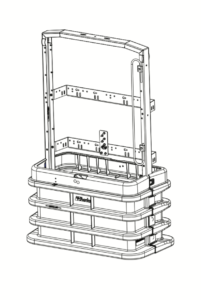

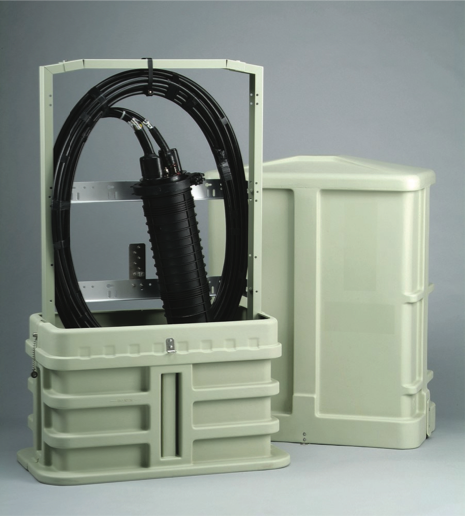

  • Lift-off dome: Enables 360 degree access to internal working areas. Dual 7/16” hex-head stainless steel locks provide security while allowing access via standard 216-tool or can wrench. Optional padlock hasp for added access control.
  • Ample base size: The base provides ample room to bring in multiple cables and conduits for maximum user flexibility.
  • Sturdy non-metallic construction: Offers superior dent resistance, corrosion protection, and electric shock safety.
  • Repositionable bonding and grounding bar: Offers flexibility for user equipment installation.
