Service Node Cable Assemblies Answer Application Demands

Amphenol’s Node Cable Assemblies link optical transport cable to optical processing equipment. This connection is critical and requires an environmental seal between the cable and the node feed-thru. Amphenol’s node cables utilize a unique IP68 rated stainless steel feed-thru adapter, featuring an anti-twist coupling body.

Reliable Performance, Added Strength and Field Durability.

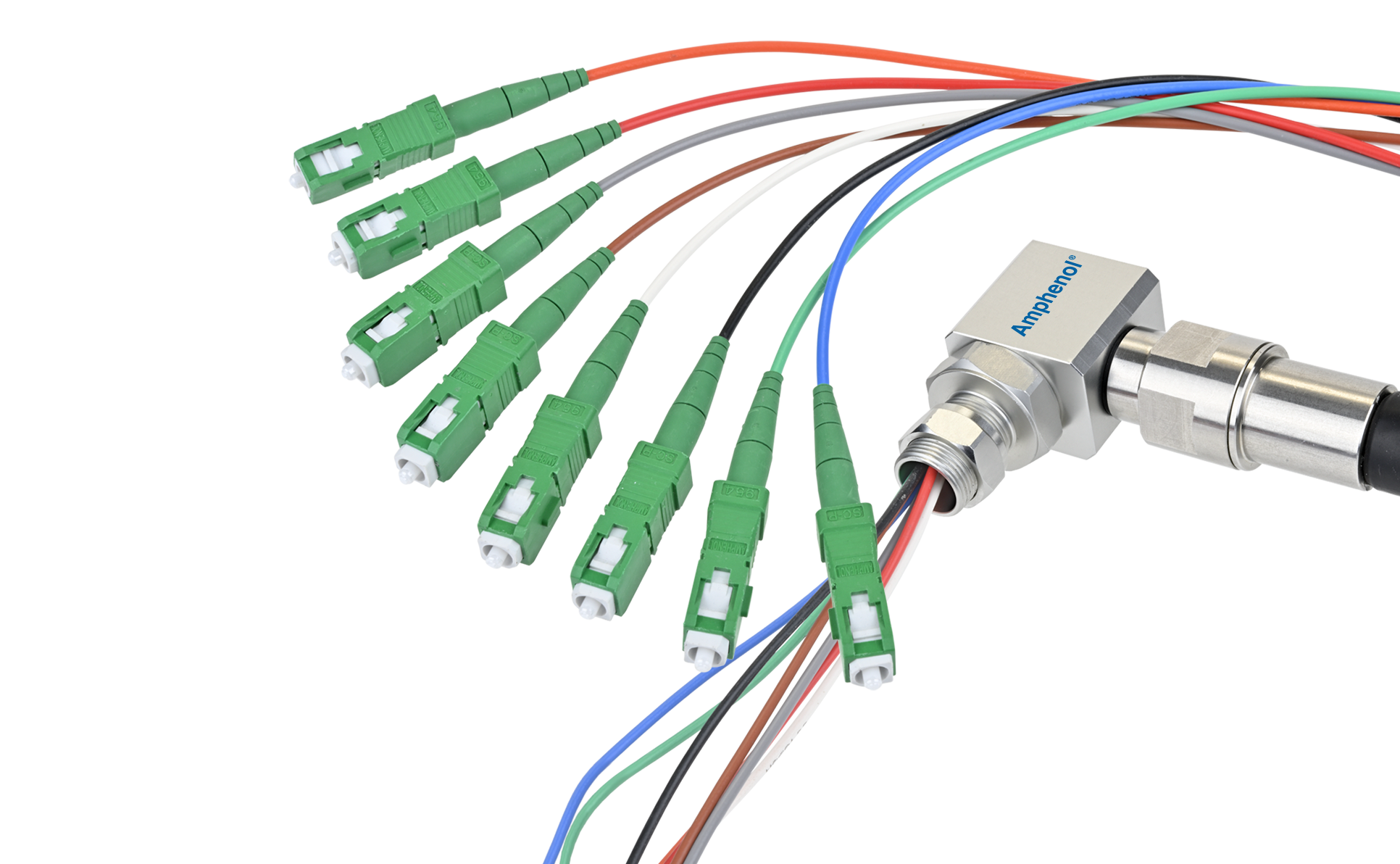

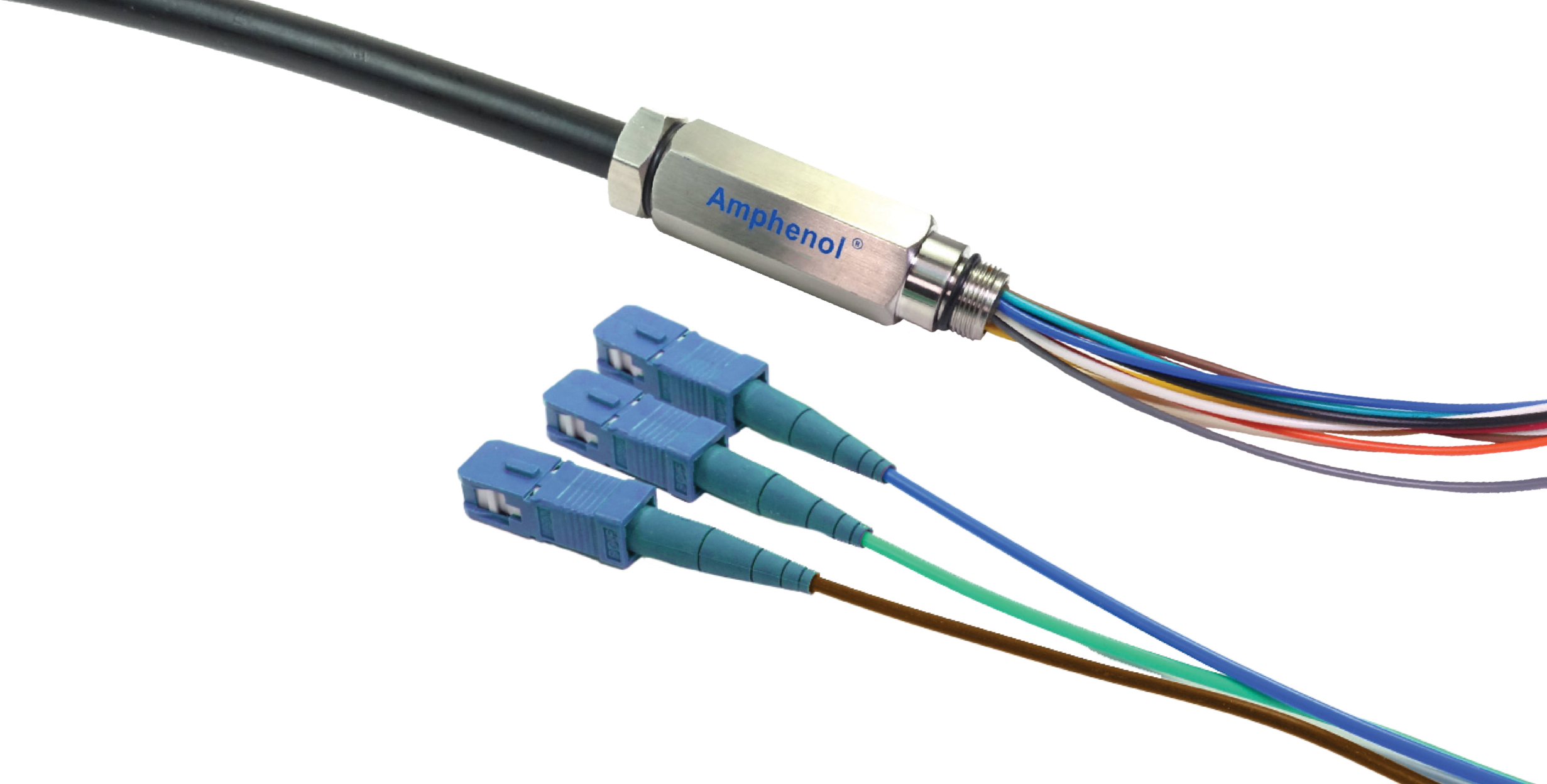

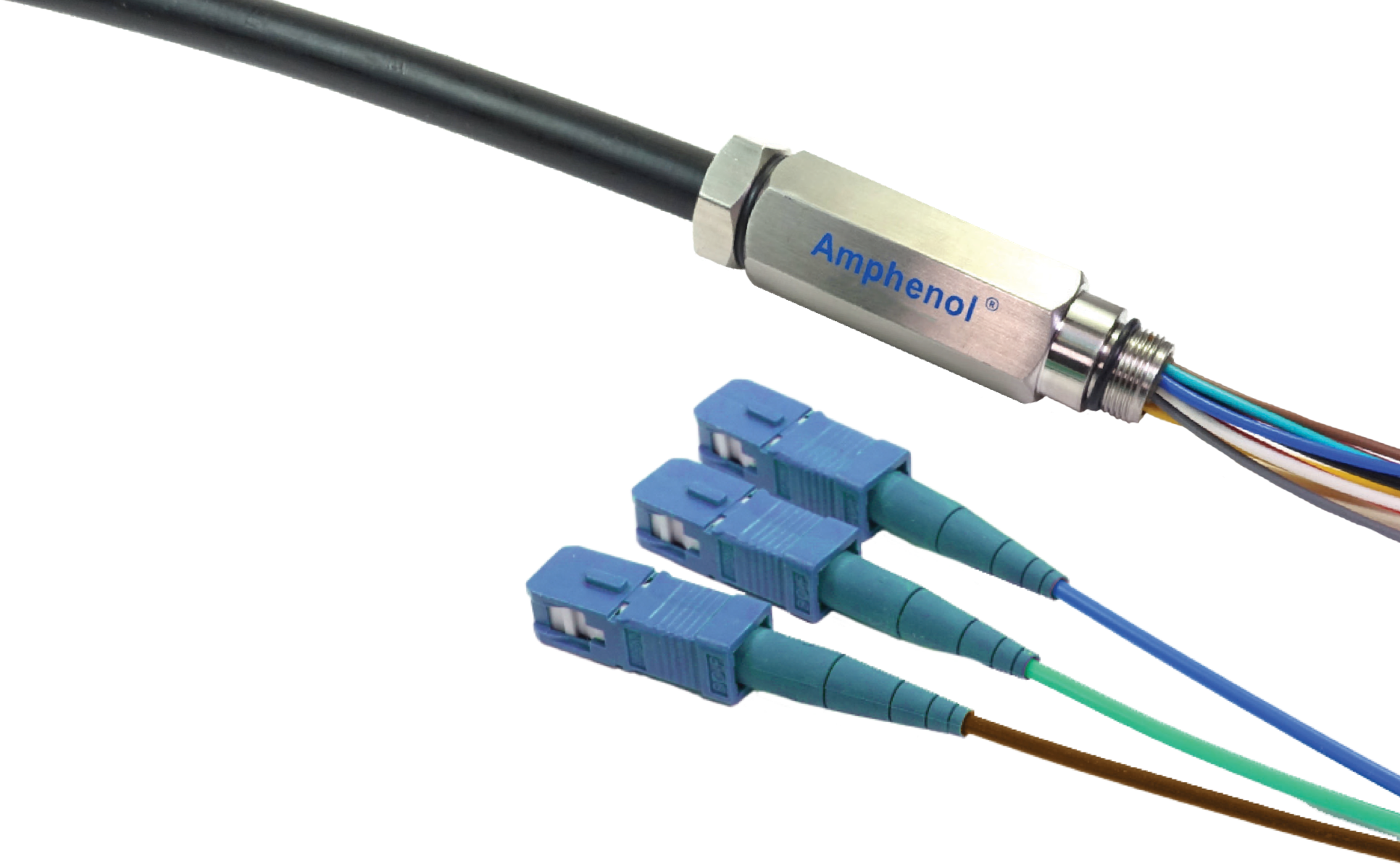

Node Cable Assemblies

Key Features:

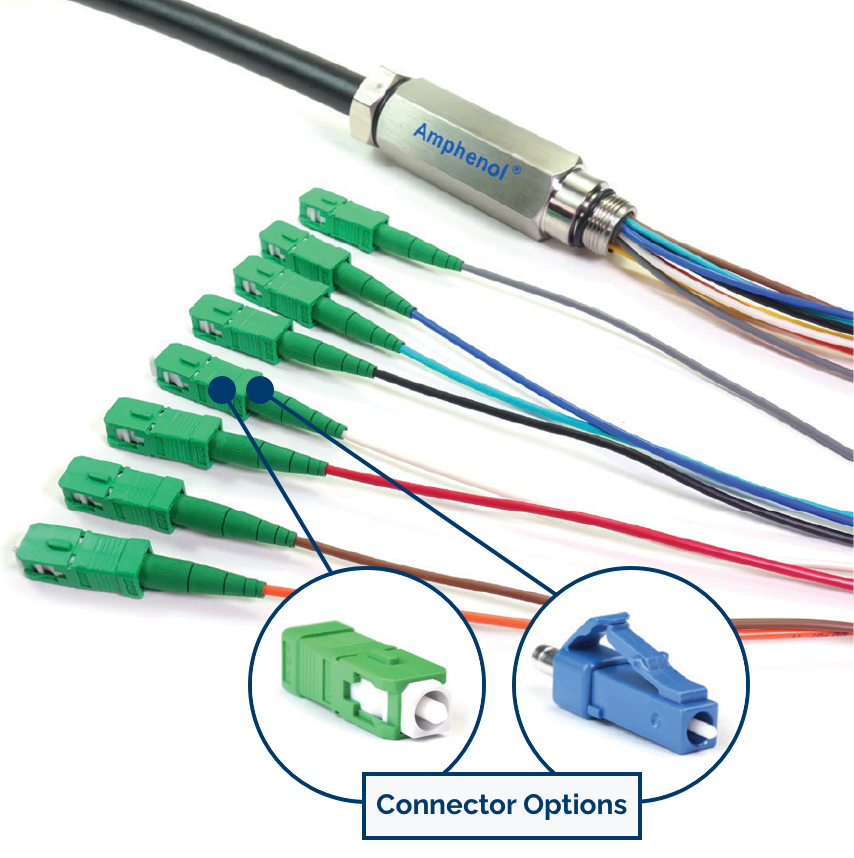

Available with SC, LC, MTP/MPO Connectors
Available with 900um, 1.2mm, 1.6mm, 2.0mm, or 3.0 fan-out
Fiber counts available from 2 to 24
Factory terminated for high performance
Stainless steel fitting
Potted furaction for secure environmental protection
No installation tools required

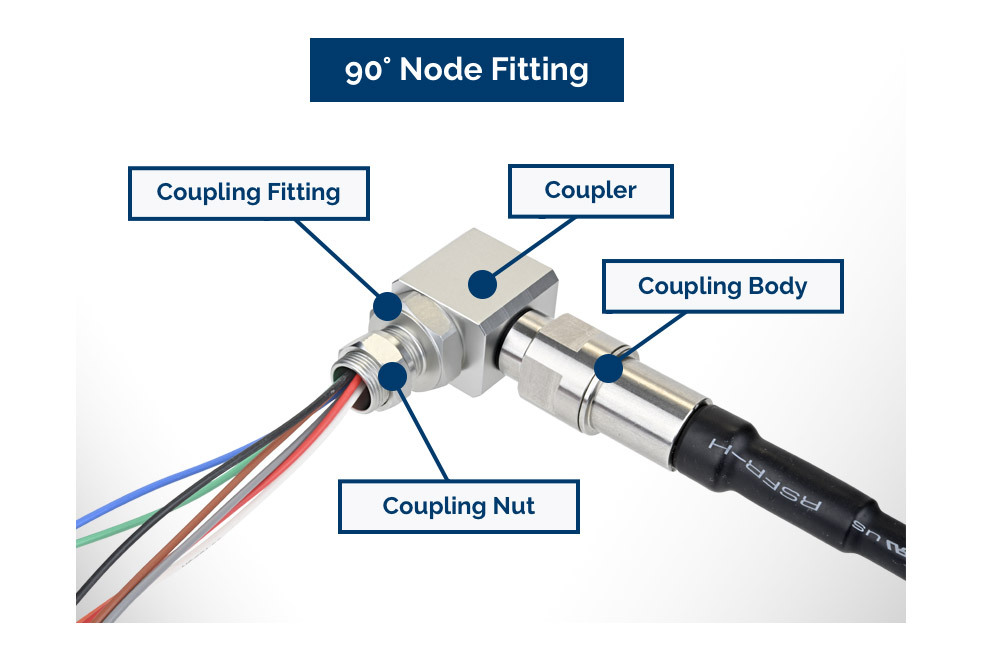

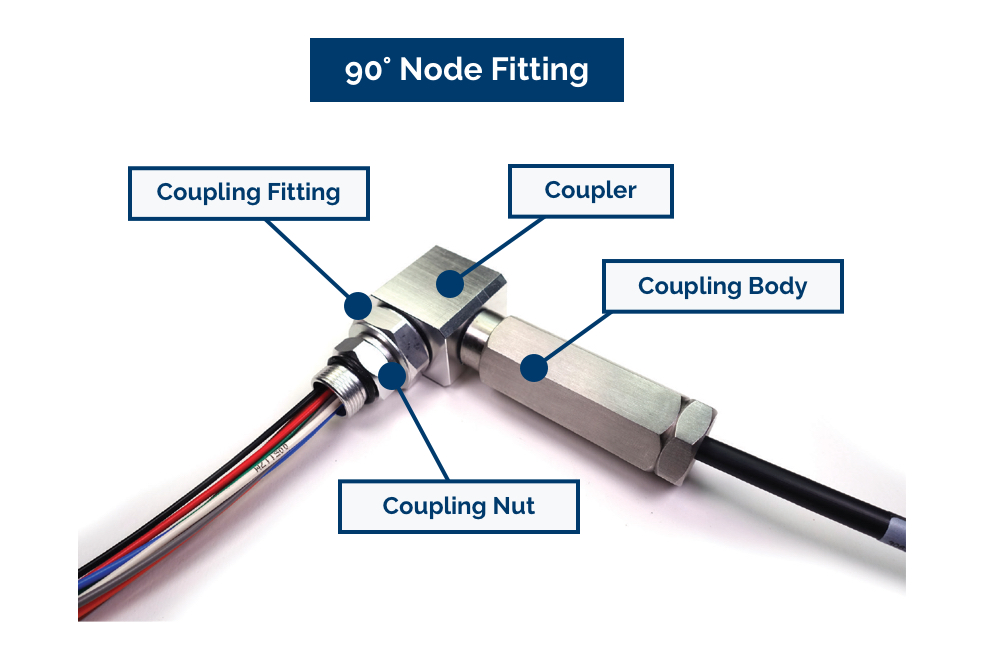

Feed-thru body features and anti-twist design

Info Sheet

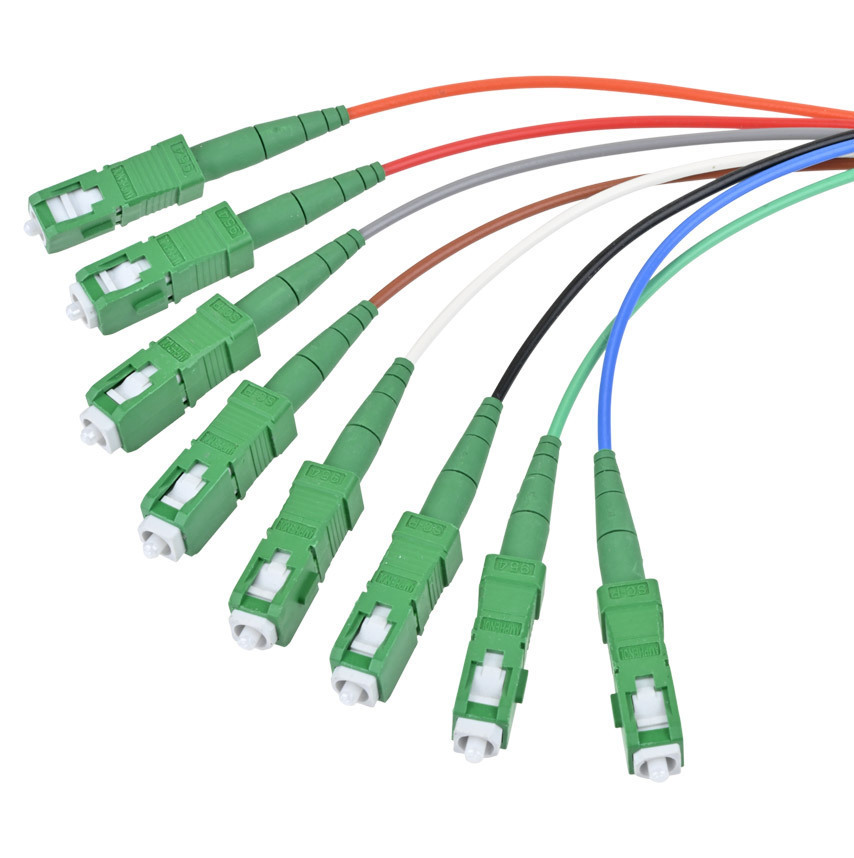

Options for Quick Install

Benefits:

Multiple connector options available
Multiple cable types available
Multiple fiber counts available
Reliable performance in field
Added strength and environmental durability
Reliable seal
Quick and easy installation
Allows tightening of node without twisting cable

Info Sheet Contact Us

Environmental Performance

Specifications:

Weather rating IP68
Operating temperatures -40 degrees C to +70 degrees C
Mating cycles 100 minimum
Cable retention 445 N (100 lbs)
Strain Relief 100 Ibf
Accepted Cable Diameter 4.8mm – 7.0mm
Submersible up to 20 feet of water head
Threading standard SCTE 5/8” – 24 UNEF

Info Sheet

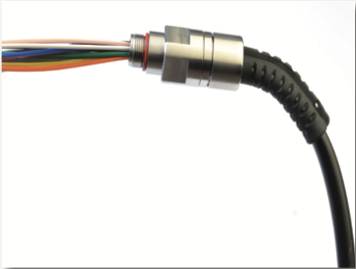

Built for Durability and Easy Installation

Amphenol’s standard node assemblies use either a dielectric OSP cable or an armored OSP cable. Their multiple O-rings ensure a fully sealed cable and node. The result is bird, rodent and water resistant.

With multiple connector options, cable types and fiber counts, Amphenol’s Service Node Cable Assemblies are the choice of installers everywhere.
