Fiber Solutions

Part # 1RU High Density Premises Bracket

This High Density Bracket offers unparalleled capacity for premises and similar applications. This bracket takes advantage of the industry-leading density of Amphenol Broadband Solutions’s HiD4 cassette to pack much greater fiber capacity into 1RU of space. It’s simple design and elegant fiber management makes it the perfect solution to quickly deliver wavelength and other services to end users.

Part # 2RU High Density B2B Premises Bracket

This bracket takes advantage of the industry-leading density of ABS’s HiD4 cassette to pack much greater fiber capacity into 2RU of space; resulting in a best-in-class achievement of 210 ports per RU. Different HiD4 cassette configurations may be utilized in the bracket to bring customized services to commercial customers.

Part # 4RU High Density Shelf

This High Density Shelf offers unparalleled capacity in a variety of headend, central office, or data center applications. This shelf takes advantage of the industry-leading density of Amphenol Broadband Solutions’s HiD4 cassette to pack much greater fiber capacity into a 4RU space.

Part # FS3 – Fiber Splice Shelf

Amphenol Broadband Solutions brings a new level of access, convenience, and security to its Fiber Splice Shelf, enabling quick and easy fiber splicing and connectivity for rack mount applications. This 1RU Fiber Shelf can be mounted in either a 19” or 23” rack. The adapter panel opening accommodates up to three single-width style LGX® modules or adapter plates.

Part # C2LINX – 1RU

MAXIMUM TERMINATION DENSITY 144 LC / 72 SC DIMENSIONS 1.75"Hx17.5"Wx18.25"D (45 mm x 445 mm x 464 mm) MODULE CAPACITY 12

Part # C2LINX – 2RU CHASSIS

MAXIMUM TERMINATION DENSITY 288 LC / 144 SC DIMENSIONS 3.5" H x 17.5" W x 18.25" D (89 mm x 445 mm x 464 mm) MODULE CAPACITY 24

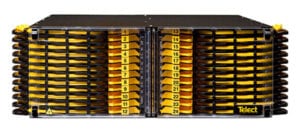

Part # C2LINX – 4RU CHASSIS

MAXIMUM TERMINATION DENSITY 576 LC / 288 SC DIMENSIONS 7.0" H x 17.5" W x 18.25" D (178 mm x 445 mm x 464 mm) MODULE CAPACITY 48

Part # C2X – 1RU

96 LC TERMINATIONS MODULE CAPACITY 4

Part # C2X – 2RU

192 LC TERMINATIONS MODULE CAPACITY 8

Part # C2X – 3RU

288 LC TERMINATIONS MODULE CAPACITY 12

Part # C2X – 4RU

432 LC TERMINATIONS MODULE CAPACITY 16 (384 LC)

Part # C2E – 1RU – 18 Base-8

144 LC or 72 MPO TERMINATIONS MODULE CAPACITY 18 Base-8

Part # C2E – 1RU – 12 Base-12

144 LC or 72 MPO TERMINATIONS MODULE CAPACITY 12 Base-12

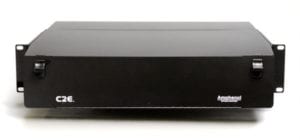

Part # C2E – 2RU – 36 Base-8

288 LC or 144 MPO TERMINATIONS MODULE CAPACITY 36 Base-8

Part # C2E – 2RU – 24 Base-12

288 LC or 144 MPO TERMINATIONS MODULE CAPACITY 24 Base-12

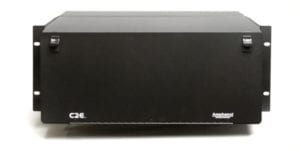

Part # C2E – 4RU – 72 Base-8

576 LC or 288 MPO TERMINATIONS MODULE CAPACITY 72 Base-8

Part # C2E – 4RU – 48 Base-12

576 LC or 288 MPO TERMINATIONS MODULE CAPACITY 48 Base-12

Part # 1RU High Density Premises Bracket

This High Density Bracket offers unparalleled capacity for premises and similar applications. This bracket takes advantage of the industry-leading density of Amphenol Broadband Solutions’s HiD4 cassette to pack much greater fiber capacity into 1RU of space. It’s simple design and elegant fiber management makes it the perfect solution to quickly deliver wavelength and other services to end users.

Part # 2RU High Density B2B Premises Bracket

This bracket takes advantage of the industry-leading density of ABS’s HiD4 cassette to pack much greater fiber capacity into 2RU of space; resulting in a best-in-class achievement of 210 ports per RU. Different HiD4 cassette configurations may be utilized in the bracket to bring customized services to commercial customers.

Part # 4RU High Density Shelf

This High Density Shelf offers unparalleled capacity in a variety of headend, central office, or data center applications. This shelf takes advantage of the industry-leading density of Amphenol Broadband Solutions’s HiD4 cassette to pack much greater fiber capacity into a 4RU space.

Part # FS3 – Fiber Splice Shelf

Amphenol Broadband Solutions brings a new level of access, convenience, and security to its Fiber Splice Shelf, enabling quick and easy fiber splicing and connectivity for rack mount applications. This 1RU Fiber Shelf can be mounted in either a 19” or 23” rack. The adapter panel opening accommodates up to three single-width style LGX® modules or adapter plates.

Part # C2LINX – 1RU

MAXIMUM TERMINATION DENSITY 144 LC / 72 SC DIMENSIONS 1.75"Hx17.5"Wx18.25"D (45 mm x 445 mm x 464 mm) MODULE CAPACITY 12

Part # C2LINX – 2RU CHASSIS

MAXIMUM TERMINATION DENSITY 288 LC / 144 SC DIMENSIONS 3.5" H x 17.5" W x 18.25" D (89 mm x 445 mm x 464 mm) MODULE CAPACITY 24

Part # C2LINX – 4RU CHASSIS

MAXIMUM TERMINATION DENSITY 576 LC / 288 SC DIMENSIONS 7.0" H x 17.5" W x 18.25" D (178 mm x 445 mm x 464 mm) MODULE CAPACITY 48

Part # C2X – 1RU

96 LC TERMINATIONS MODULE CAPACITY 4

Part # C2X – 2RU

192 LC TERMINATIONS MODULE CAPACITY 8

Part # C2X – 3RU

288 LC TERMINATIONS MODULE CAPACITY 12

Part # C2X – 4RU

432 LC TERMINATIONS MODULE CAPACITY 16 (384 LC)

Part # C2E – 1RU – 18 Base-8

144 LC or 72 MPO TERMINATIONS MODULE CAPACITY 18 Base-8

Part # C2E – 1RU – 12 Base-12

144 LC or 72 MPO TERMINATIONS MODULE CAPACITY 12 Base-12

Part # C2E – 2RU – 36 Base-8

288 LC or 144 MPO TERMINATIONS MODULE CAPACITY 36 Base-8

Part # C2E – 2RU – 24 Base-12

288 LC or 144 MPO TERMINATIONS MODULE CAPACITY 24 Base-12

Part # C2E – 4RU – 72 Base-8

576 LC or 288 MPO TERMINATIONS MODULE CAPACITY 72 Base-8

Part # C2E – 4RU – 48 Base-12

576 LC or 288 MPO TERMINATIONS MODULE CAPACITY 48 Base-12

Part # WaveTrax® Fiber Raceway

WaveTrax®, the Amphenol fiber raceway system, is an end-to-end solution designed to help engineers deliver reliable fiber optic network performance. WaveTrax snap-together components reduce time and cost on installation by 50 percent and on retrofits by 60 percent.

Part # FlexTrax^®

FlexTrax® is an innovative flexible cable manager that enables quick access to cables for rapid changes in complex routing applications. FlexTrax® provides more flexibility and better protection than split tube and greater ease of access than slotted duct.

Part # Optical Splitter Components

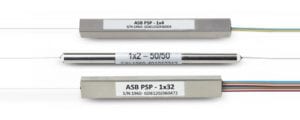

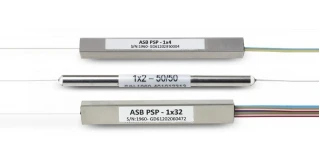

Amphenol Broadband Solutions now offers a complete line of discrete Optical Splitter Components for a wide range of uses in various optical network designs. The product family includes splitters from 2 to 32 output fibers. Packaging has been designed to provide stable optical performance across a wide operating temperature range.

Part # CWDM HiDT Tray Module

Amphenol Broadband Solutions has redefined the industry standard for compact splice tray mounted passive multi-component modules. HiDT tray modules are designed to integrate directly onto the Amphenol Broadband Solutions Universal Splice/Component Tray (UST) with no intermediate mounting fixtures.
