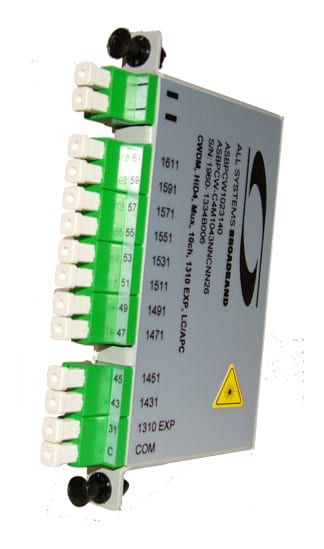

CWDM HiD4 Cassette

Amphenol Broadband Solutions has created an industry leading high-density, miniature shelf mount cassette for CWDM MUX and DEMUX applications.

The miniature HiD4 footprint provides full functionality with up to 14 front facing LC/APC or LC/UPC ports and its mounting is compatible with LGX® shelves.

At approximately 3″ deep, and half the width of a single LGX module, this package provides significantly improved port density when compared with conventional LGX cassettes. The cassette’s unique housing design and increased port count available on the front faceplate of the device allows for port groupings by function, such as; commons and upgrades, wavelength channels and test/monitoring ports providing added versatility for the network architecture.

LGX® is a registered trademark of OFS FITEL, LLC


  • Industry leading miniature packaging
  • LGX mounting compatible
  • Up to 14 LC ports on the faceplate enables design and configuration versatility
  • Front and side facing labels improve port identification
  • Port layout designed to optimize patch cord management
  • High channel isolation
  • Low insertion loss
  • Rugged metal housing
  • Wideband 1310nm express port
  • DWDM upgrade port available
  • Optional tests port
