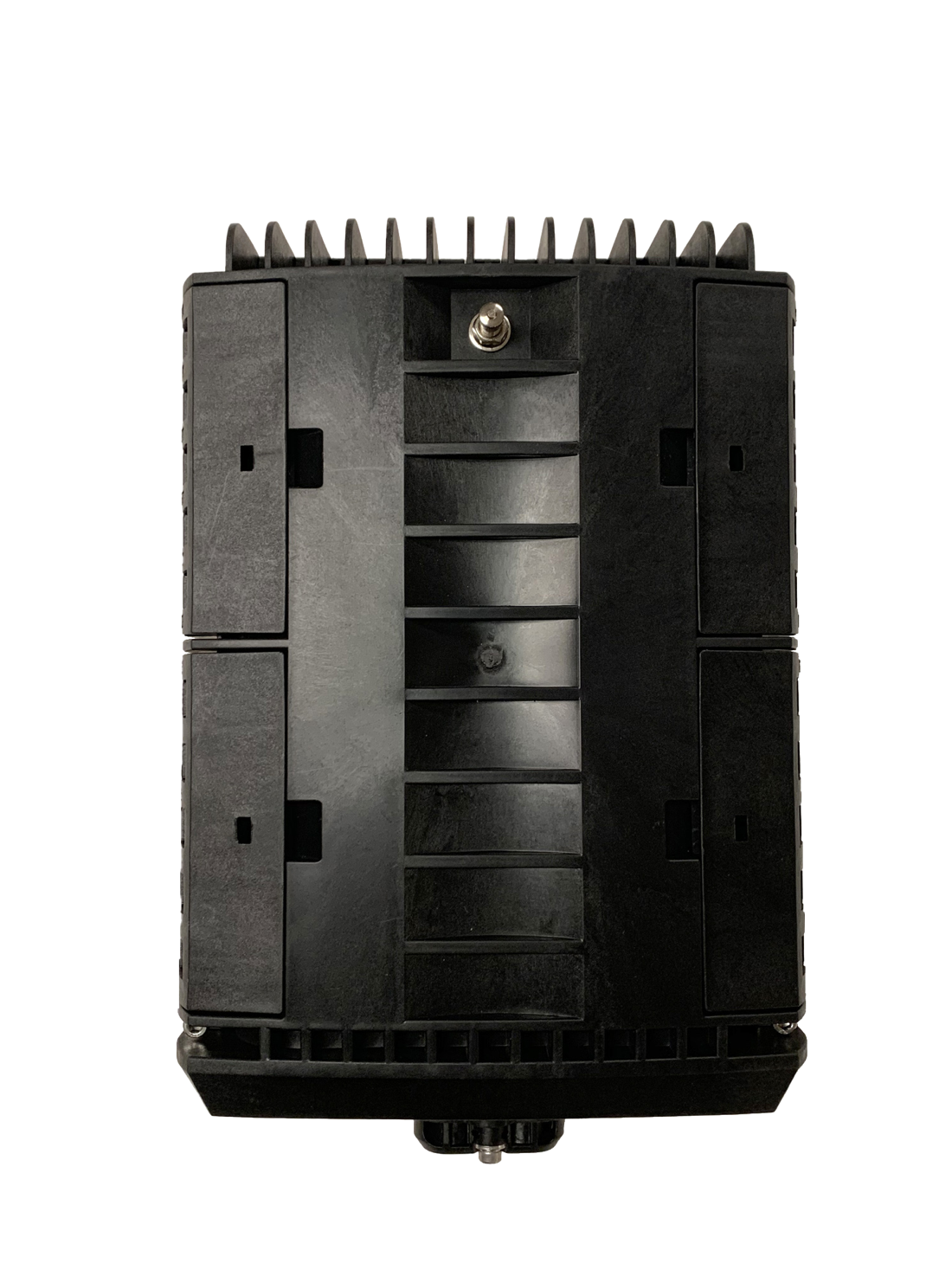

Fiber Sealed Drop Closures (FSDC-H)

The Amphenol fiber optic sealed drop closures (FSDC) provide a versatile and functional cost-effective solution for FTTH network connections to the subscriber. The FSDC-H series front panel has an H-connector hardened OptiTap® compatible adapter interface for simple plug and play connection of preconnectorized hardened drop cables.



These closures are fully sealed units which can be mounted on a strand, a pole, or in a pedestal, as well as below ground to meet any installation topology. Although a compact size, there is ample room for express fiber storage. FSDC-H closures support a numberof architectures including centralized, distributed split and distribution tap.

Features:

  • Robust glass filled polypropylene housing to withstand acidic and alkaline environments
  • Up to 48 single splices provides adequate splice capacity in a compact size
  • Available with 2, 4, or 8 Amphenol H-connector to SC/APC adapter interface (OptiTap compatible)
  • Spacious loose tube fiber storage in a compact size can express 144 fibers
  • Mechanical compression technology provides cost-effective reliable cable sealing
  • Hinged snap cover allows easy access for installation, maintenance, and upgrades
  • Sealed IP68 rated for use in aerial, pole, pedestal, or below grade applications
