Non-Louvered Pedestals (NLP)

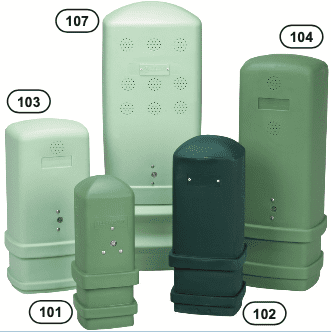

The Amphenol Non-Louvered Vertical Plastic Pedestals provide mounting facilities and security for taps, splitters and line extenders.

These pedestals are molded from a polyethylene specifically designed to resist impact, ultraviolet and environmental degradation. Each pedestal comes equipped with your choice of either a galvanized or powder-coated mounting stake, as well as one of many optional bracketries to provide you with greater installation flexibility.

Each mounting stake is equipped with slotted holes and offers easy installation of your hardware and equipment. During installation, simply bury the pedestal base to the desired depth and backfill.  The mounting stake and pedestal top-slide channel add to the security and craft friendliness of pedestal assembly operation. A variety of locking options are available to address your specific security needs.

Lock Options

Amphenol offers a variety of lock options including the popular self-locking dome system. This lock system consists of a spring-loaded lock (hook) installed in the pedestal top that automatically engages a base catch installed in the pedestal base. No tools are required for lock activation. Simply align the pedestal top over its base and let go. An audible metallic click signifies that the pedestal is properly locked. The lock (hook) is unlocked by a 1/4 turn rotation of the tamperproof bolt.

Color Options

Amphenol CATV Pedestals and Housings are available in UV-resistant colors that will not fade, chalk or discolor. Color is consistent and uniform thoughout material.

Three standard color choices are:

• Light Green
• Medium Green
• Dark Green

Features:

• Secure and cold weather, high-impact resistant
• Multiple lock, bracketry and color options to satisfy all hardware needs
• Craft-friendly cover slides easily into locking position
• All hardware and bracketry options are constructed of aluminum and stainless steel
• 360 degree access and rectangular shape provide increased workable area
