For greenfield network deployments, a fiber-base access network provides a future-proof platform to overlay HFCto RFOG or EPON technologies.
Amphenol Broadband Solutions (ABS) proven Louvered Vertical Pedestal B05 series CATV housings, offering a robust non-metallic housing with a profile common to cable telecommunications networks. The CATV fiber pedestals supports architecture options including: spliced feed and drops, or multi-port fiber terminals. ABS P173018 Below Grade Enclosures provide an efficient means for fiber storage, fiber management, and ease of access to termination equipment within the B05 enclosure. Designed for light duty placements (parkway/greenbelt applications).
Multi-Purpose Housing
A proven, versatile enclosure designed to provide above grade access to service provider networking equipment.

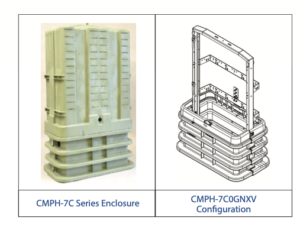

The Amphenol Multi-Purpose Housing Series 7C (CMPH-7C) is widely deployed across wireline and wireless service providers networks. The enclosure is designed for both new and rehabilitation installations. The superior structural strength, outstanding environmental protection and ease of installation combine to create a long-life housing that reduces operations expenses.

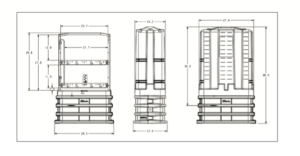

The CMPH-7C0GNXV configuration is designed for service provider networks to house active and passive RF equipment, optical node, fiber terminal and/or fiber splice closure with fiber cable slack
Product Gallery:
Features:
- Molded of polyethylene (PE) with ultraviolet U/V inhibitors to provide impact resistance, color stability and long-life
- Standard housing color is light green
- Vented dome
- Self-latching, dome locking system reduces unlocked pedestals and unwanted access
- Hex-head locking bolt for use with standard 7/16” CAN or terminal wrench
- Temporary drop access feature
