R02 Round Profile Vertical Broadband Pedestal

Drop Access Pedestal for Directional Taps, Line Splitters and Fiber Terminals

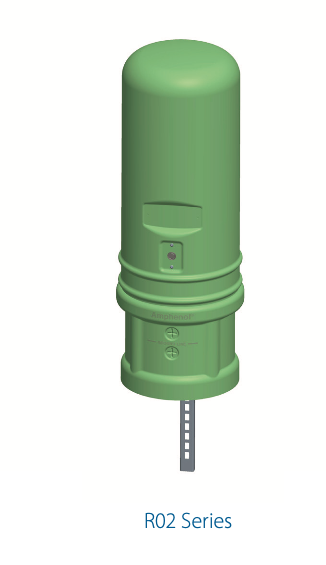

Amphenol R02 Round Profile Non-Louvered Vertical Pedestal provides mounting facilities and security for fiber taps and RF passive components used in today’s Fiber-to-the-Home or coaxial based access networks. The pedestal is engineered for installation with the integrated galvanized equipment mounting stake. Various access networking equipment can be affixed directly to the slotted thru–hole provisions integrated into the equipment mounting stake.

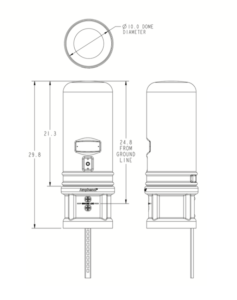

The R02 pedestal has a round profile dome which is self-latching for reduced chance of being left unlocked. The depth of the dome provides sufficient clearance to support the bend radius of fiber drops exiting a fiber terminal or coax drop cables exiting the RF directional tap. The dome’s height provides ample space for stacked interconnected directional taps with splitters and directional coupler housings in a single pedestal. These pedestals are molded from a polyethylene resin specifically designed for outside plant environments, resisting impact, ultraviolet and environmental degradation

Product Gallery:

Features:

  • Molded of polyethylene (PE) with ultraviolet U/V inhibitors to provide impact resistance, color stability and long-life
  • Housing color is light or dark green
  • Self-latching, dome locking system reduces unlocked pedestals and unwanted access
  • Hex-head or P-key locking bolt options

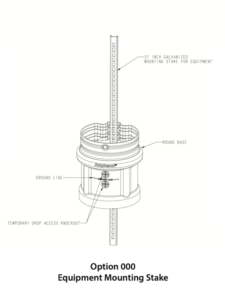

  • Galvanized equipment mounting stake
  • Molded-in ground line for consistent installations
  • Temporary drop access features
