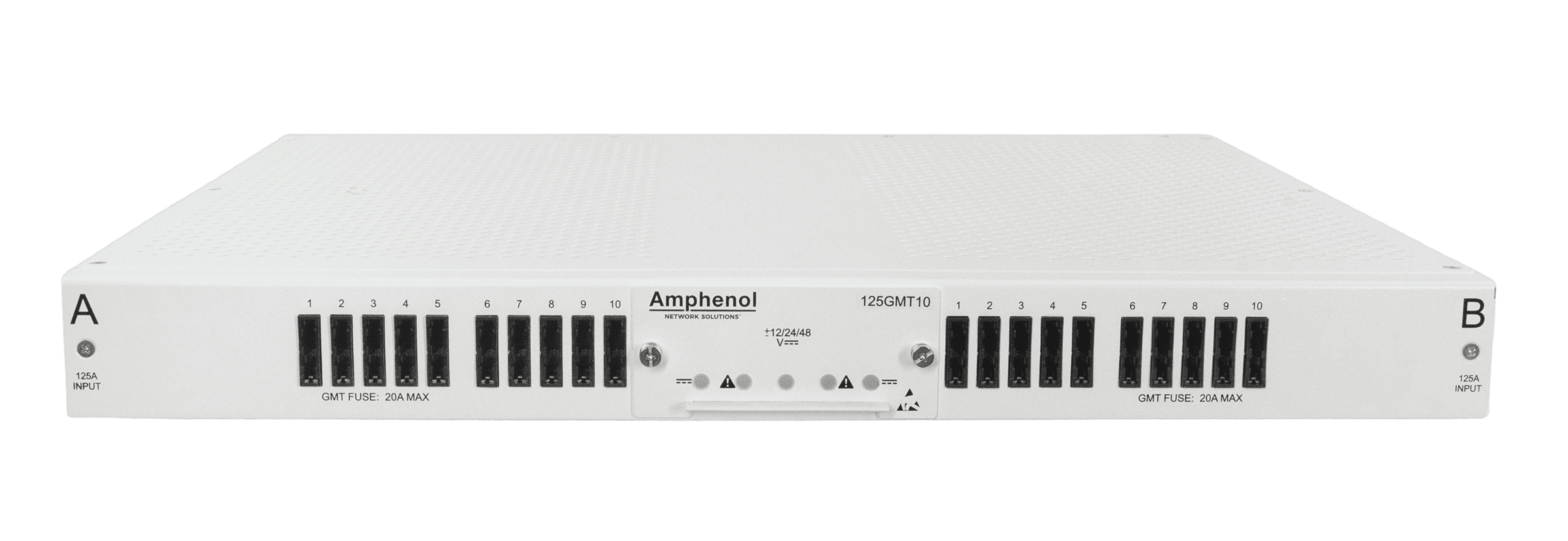

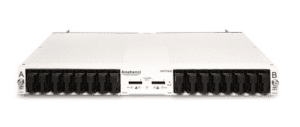

125A DUAL-FEED GMT FUSE PANEL

We are always innovating and our new 1RU platform proves just that.  It includes both new and enhanced product features that make it easy to choose the right product, quickly deploy, install and monitor the highest density panel in the industry.

We have what you need

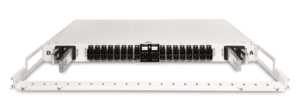

Require Density?   Connectorization provides a dense solution, allowing outputs to come straight out of the panel, so that a 1RU panel truly takes only 1RU; no open space is required below the panel for cable routing.

Need to Streamline Your Install?   Connector contacts use the same installation crimpers as standard lugs, and quickly plug into the power panel with a dual-locking retainer.  Connectors can be dis-assembled and re-assembled in the field.  Screw terminations are eliminated, making installation and upgrades very fast.  Pre-assembled whips can be custom-ordered to allow even faster deployments.

Have a Variety of Capacity Requirements?   Panels are available in high current input 8×8 circuit breaker or TPA fuses, mid-current TPA/circuit breaker/GMT combinations, and low current 10×10 GMT and 15×15 GMT variations.

Need Some Power Intel?   Panels are available with standard alarming via output contacts or with nrgSMART per-circuit current monitoring.

Love the Simple Life?   All panels have removable alarm cards for easy field servicing.  All standard panels share a common alarm card and all nrgSMART panels share a common nrgSMART alarm card, making spare inventory simpler to manage.

Features:

Inputs: Specifications:
Voltage range (nominal voltage) ±12VDC, ±24VDC and ±48VDC
Max. input load rating

125GMT10/125GMT15:

125GMT10-C/125GMT15-C



125A @ 65°C per panel

125A @ 55°C per panel (De-rated to 100A @ 65°C)

Short circuit withstand rating 5000A
Nominal power loss at full load Less than 45W per side @5,000W full load per side (125A x 48V);
125A @ 65°C per panel
Percentage of full power dissipation at nominal voltage Less than 0.5%
Max. input interrupt device 125% of panel rating (for 125A rated feeds)
Horizontal input terminal studs (with Keps nuts and flat washers) for dual-hole compression lugs Two pairs of 1/4-20 studs on 5/8″ centers per terminal [max. lug width of .5″ (12.7 mm)]. Torque bolts (using 7/16″ or 12 mm socket) to 50 in/lb. (5.5 N•m), max.
Input wire size #8 AWG to #1/0 AWG
Grounding: Specifications:
Earth GND terminal bolts (with spring washers and flat washers) for dual-hole compression lug Three sets of 1/4-20 threaded holes on 5/8″ centers. [max. lug width of .5″ (12.7 mm)]. Torque bolts (using 7/16″ or 12 mm socket) to 50 in/lb. (5.5 N•m), max.
Ground wire size #6 AWG to #1 AWG
Outputs: Specifications:
Output fuse 20A GMT Fuse
Output load 14A continuous GMT fuse
Minimum short circuit interrupt rating 5000A
Optional: Terminal blocks, single-hole compression lugs 20 or 30, #6-32 screws [max. lug width of .31″ (7.9)]. Torque screw to 8 in/lb. (.9 N•m), max.
Optional: Output wire size, single-hole compression lug #22 AWG to #6 AWG
Optional: Connectors (purchased separately) 20 or 30, P24 connector plugs, latching, safe touch
Optional: Output wire size, connectors #14 AWG to #10 AWG
GMT fuses Cooper Bussmann and Littelfuse
Alarms: Specifications:
Alarm relay contacts 2A @ 30 VDC; 0.6A @ 60 VDC
Max. alarm card power rating @12V: 18mA (0.22W) @24V: 20mA (0.48W); @48V: 30mA (1.44W)
Alarm wire size #24 AWG, typical (#26 to #20 AWG)
Terminals Wire wrap or mates with TE Connectivity 3-640428-3
Dimensions: Specifications:
125GMT10/125GMT15 Height: 1.75″ (44 mm)

Depth: 13.9″ (353 mm)

Width: 17″ (432 mm) without brackets

19” and 23” brackets included with panel

125GMT10-C/125GMT15-C Height: 1.75″ (44 mm)

Dephth: 13.8″ (350 mm) without tie bar

16.5″ (419 mm) with tie bar

Width: 17″ (432 mm) without brackets

19” and 23” brackets included with panel

Tie bar not included with panel

Cable-end connectors not included with panel

Compliance: Specifications:
UL Listed
NEBS Level 3
