nrgSMART CONTROLLER

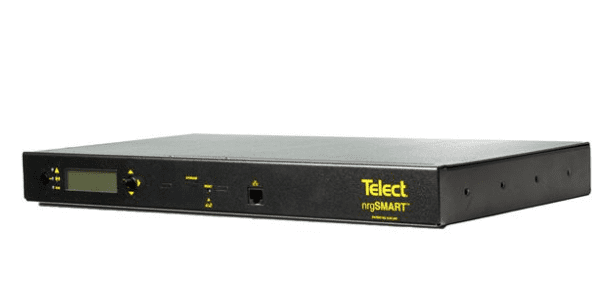

Amphenol Network Solutions nrgCONTROL-BT coordinates and collects data for up to 30 nrgSMART enabled PDUs. Panels are connected over a simple daisy chain connection. Only one IP address is required for all attached PDU panels to communicate circuit level current, voltage, temperature, alarm, and circuit threshold data. Data for all attached panels is accessed locally through the LCD screen or through the on-board configuration wizard. Data service including detailed analytic visualization is available through Telect’s hosted data service or can be interfaced to existing BMS or NMS systems over SNMP.

Inputs/Outputs
Connection to
Configuration Wizard
10/100 Ethernet, RJ-45 Jack
Connection to Data Server 10/100 Ethernet, RJ-45 Jack
Connection to
nrgSMART Panels
nrgNET
Supported Browsers Chrome
Firefox
Voltage Range (nominal) -20V to -57V  (nominal -48 VDC)
Input Power Wire Size #18-12 AWG
Max. Operating Current 3A (80% of 4A fuse rating)
SD Card Capacity 4 Gigabytes
SD Card Type Micro SD
Grounding
Earth GND terminal bolts
(with washers) for dual-hole
compression lugs
Two pair of 1/4-20 threaded holes on 5/8-in.
centers. Torque bolts (using 7/16-in. or
12 mm wrench) to 50-in./lb. (5.5 N•m), max.
Environmental
Humidity 0 to 90%, non-condensing
Temperature -5ºC to 55ºC (23ºF to 131ºF)
Mechanical
Dimensions 17″W x 1.73″H x 8.99″D
Weight 8.7 lbs. (10.7 lbs. shipping)
Material cold-rolled steel
Finish powder-coat
Color pewter
Mounting 19″ or 23″ rack mounting, EIA and WECO
Compliance
Approvals UL, NEBS level 3

Features:

  • Coordinates and collects data for 30 nrgSMART enabled devices
  • Panels connect over daisy chain connection
  • Only one IP address required for all attached PDU panels
  • Can connect to DC power in -20 to 57V range
